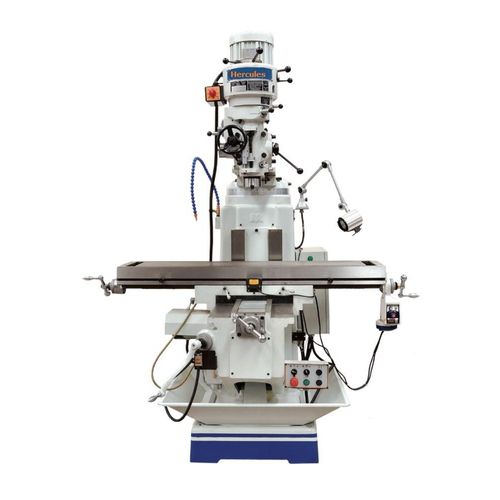

3-axis milling machine M5SV(M6325D)vertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- X travel
910 mm, 1,000 mm
(35.83 in, 39.37 in)- Y travel
380 mm
(14.96 in)- Z travel
360 mm
(14.17 in)- Power
4 kW
(5.44 hp)
Description
Table size - 10"×54"*12*54
Longitudinal travel - 1000/910 with power feed
Cross travel - 380
Certical travel - 360
T-slot No. and size - 3×16
Ram travel - 520
Distance from spindle nose to table surface - 50-410
Spindle hole taper - Standard:ISO40
Spindle travel - 127
Auto. quill feed - Three steps:0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor - 3.75Kw/5HP
Head tilting - 45° or fix optional
Head swivel - 90°
