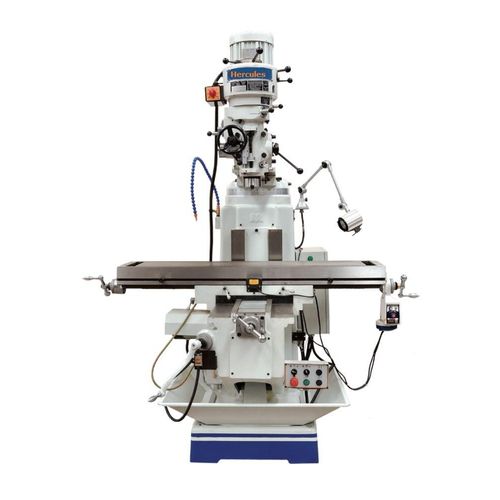

3-axis milling machine M5V(M6330)vertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- X travel
780 mm, 900 mm
(30.71 in, 35.43 in)- Y travel
420 mm
(16.54 in)- Z travel
360 mm
(14.17 in)- Power
4 kW
(5.44 hp)- Spindle speed
Max.: 5,440 rpm
(34,180.528 rad.min-1)Min.: 60 rpm
(376.991 rad.min-1)
Description
Table size - 12"×54"
Longitudinal travel - 900/780 with power feed
Cross travel - 420
Certical travel - 360
T-slot No. and size - 3×16
Ram travel - 660
Distance from spindle nose to table surface - 100-480
Spindle hole taper - Standard:ISO40
Spindle travel - 127
Spindle speed - standard:shiftgrade 50Hz:65~4500RPM 60Hz:80~5440RPM 50HZ:60~3000RPM 60HZ:70~3600 RPM
optional variable speed:65~3750
Auto. quill feed - Three steps:0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor - 3.75Kw/5HP
Head tilting - 45° or fix optional
Head swivel - 90°
