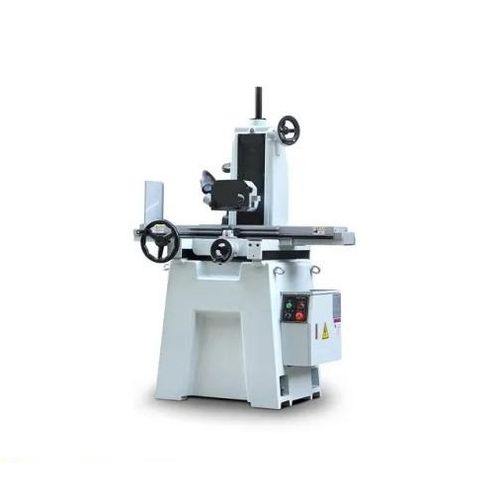

Surface grinding machine M618A
high-precision

Surface grinding machine - M618A - Hercules Machinery Equipment Ltd. - high-precision

Add to favorites

Compare this product

Characteristics

Type: surface
Other characteristics: high-precision
Spindle speed: 2,800 rpm, 3,600 rpm
(17,593 rad.min-1, 22,619 rad.min-1)
Power: 1 ch, 1.5 ch
(1 hp, 1.5 hp)
X travel: 450 mm
(17.72 in)
Y travel: 150 mm
(5.91 in)

Description

Working table - 150×457 mm Maxium X axis grinding - 450 mm Maxium y axis grinding - 150 mm Max.distance from spindle to working table - 350-400 mm Maximum height of grinding - 300 mm Size of magnetic chuck - 150×400 mm Longitudinal feeding - manual tavel - 485 mm manual travel - 180 mm feeding per scale - 0.02 mm feeding per reverse - 5 mm feeding per scale - 0.005 mm feeding per reverse - 1 mm Size of sand wheel（OD×THICKNEDD×ID） - 180×13×31.75 mm RPM of spindle - 3600(60Hz)2800(50Hz) mm Spindle motor - 1/1.5（optional）HP N.W. - 720 Kg G.W. - 850 Kg L*W*H - 1640×1390×2060 mm
