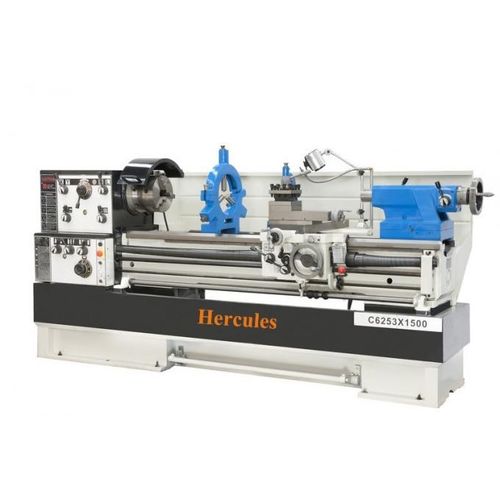

Conventional lathe C6253horizontalheavy-duty
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Applications
- heavy-duty
- Diameter
530 mm
(20.87 in)- Spindle speed
Max.: 1,600 rpm
(10,053.096 rad.min-1)Min.: 25 rpm
(157.08 rad.min-1)
Description
Swing over bed - 530mm
Swing over cross slide - 300mm
Swing in gap - 738mm
Distance between centres - 1500/2000mm
Width of bed - 400mm
Spindle bore - 80mm
Range of spindle speed - 12 changes 25-1600r/min
Feeds and Threads -
Leadscrew pitch - 6mm or 4T.P.I
Metric threads range - 47 kinds, 0.2-14mm
Diameter pitches range - 50 kinds, 4-112T.P.I
Module pitches range - 39 kinds, 0.1-7M.P
Tailstock travel - 180mm
Diameter of tailstock sleeve - 75mm
Taper of tailstock - No.5
Power of main motor - 7.5kW(10HP)
Coolant pump - 0.1kW(1/8HP)
Dimensions and weight -
Overall dimensions (LxWxH) - 2900/3400x1120x1430mm
Packing size (LxWxH) - 2960/3460x1130x1820mm
Net weight - 2335kg/2685kg
Gross weight - 2700kg/3070kg
