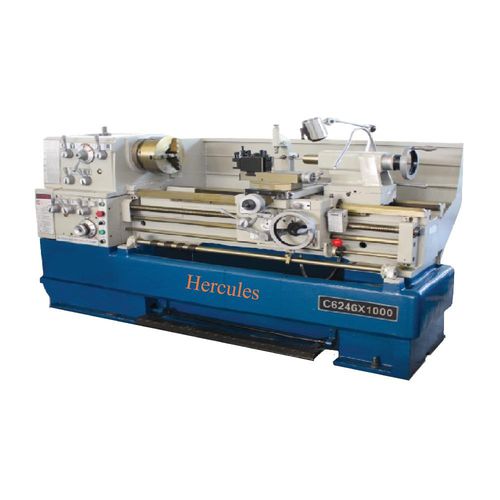

Conventional lathe C6246horizontal
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Diameter
460 mm
(18.11 in)- Spindle speed
Min.: 25 rpm
(157.08 rad.min-1)Max.: 2,000 rpm
(12,566.371 rad.min-1)
Description
Swing over bed - 460mm
Swing over cross slide - 270mm
Swing in gap - 690mm
Distance between centres - 1000/1500mm
Width of bed - 300mm
Spindle bore - 58mm(82mm optional)
Range of spindle speed - 13 changes 25-2000r/min
Leadscrew pitch - 6mm or 4T.P.I
Metric threads range - 42 kinds, 0.1-14mm
Diameter pitches range - 50 kinds, 4-112T.P.I
Module pitches range - 35 kinds, 0.1-7M.P
Tailstock travel - 120mm
Diameter of tailstock sleeve - 60mm
Taper of tailstock - No.5
Power of main motor - 5.5kW(7.5HP)
Coolant pump - 0.1kW(1/8HP)
Overall dimensions (LxWxH) - 2200/2750x1080x1370mm
Packing size (LxWxH) - 2250/2800x1120x1620/1560mm
Net weight - 1720/1970kg
Gross weight - 2045kg/2330kg
