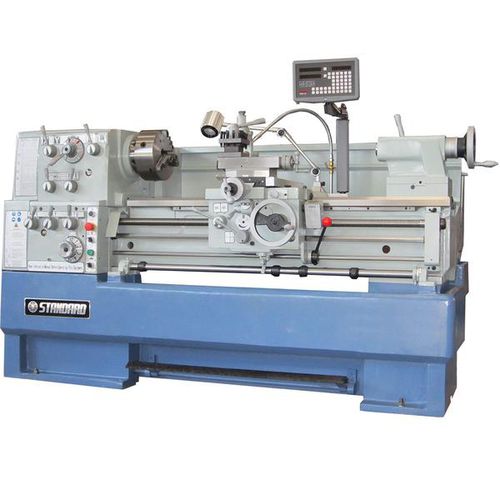

Conventional lathe C6241horizontal
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Diameter
410 mm
(16.14 in)- Spindle speed
Min.: 25 rpm
(157.08 rad.min-1)Max.: 2,000 rpm
(12,566.371 rad.min-1)
Description
Swing over bed - 410mm
Swing over cross slide - 220mm
Swing in gap - 640mm
Distance between centres - 1000mm
Width of bed - 300mm
Spindle bore - 58mm(82mm optional)
Range of spindle speed - 12 changes 25-2000r/min
Leadscrew pitch - 6mm or 4T.P.I
Metric threads range - 41 kinds, 0.1-14mm
Diameter pitches range - 50 kinds, 4-112T.P.I
Module pitches range - 34 kinds, 0.1-7M.P
Tailstock travel - 120mm
Diameter of tailstock sleeve - 60mm
Taper of tailstock - No. 4
Power of main motor - 5.5kW(7.5HP)
Coolant pump - 0.1kW(1/8HP)
Dimensions and weight -
Overall dimensions (LxWxH) - 2200x1080x1340mm
Packing size (LxWxH) - 2250x1120x1620mm
Net weight - 1670kg
Gross weight - 1980kg
