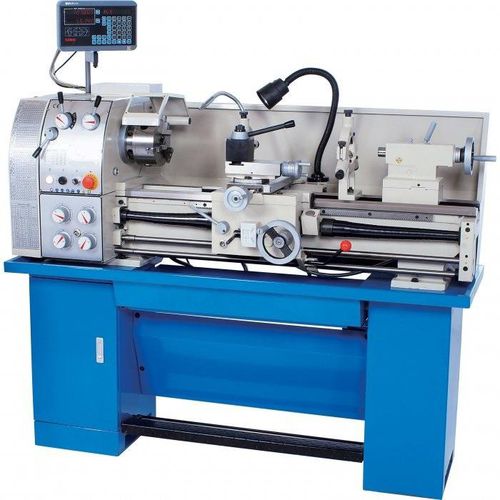

CNC lathe C0630D Deluxe

(mm)Swing Over Bed - 300 (mm)Distance Between Centres - 900 (mm)Spindle Bore - 38 (mm)Swing In Gap - 450 (mm)Swing Over Cross-slide - 180 Digital Readout System Fitted - Yes Quick Change Toolpost Fitted - Yes Leadscrew Covers Fitted - Yes Coolant System - Yes (mm)Tool Height To Suit - 12 (mm)Centre Height - 150 Spindle Nose Size or Type - D1-4 Camlock (mm)Bed Width - 180 (MT)Headstock Spindle Taper - 5 (MT)Tailstock Taper - 3 (mm)Cross Slide Travel - 170 (mm)Compound Slide Travel - 75 Leadscrew Type - Imperial (inch/rev)Imperial Cross Feed (X-Axis) - 0.009 - 0.236 (inch/rev)Imperial Longitudinal Feed (Z-Axis) - 0.04 - 1.2236 (No. / mm)Metric Thread Steps & Pitch - 32 (0.4 - 7) (No. / TPI)Imperial Thread Steps & TPI - 36 (4 - 60) (mm)3 Jaw Chuck Diameter - 160 (mm)4 Jaw Chuck Diameter - 200 (No. / rpm)Spindle Steps / Speeds - 18 (65 - 1810) (kW / hp)Motor Power - 1.5 / 2 (V / amp)Voltage / Amperage - 240 / 10 (cm)Shipping Dimensions (L x W x H) - 168 x 76 x 145 (kg)Nett Weight - 595
