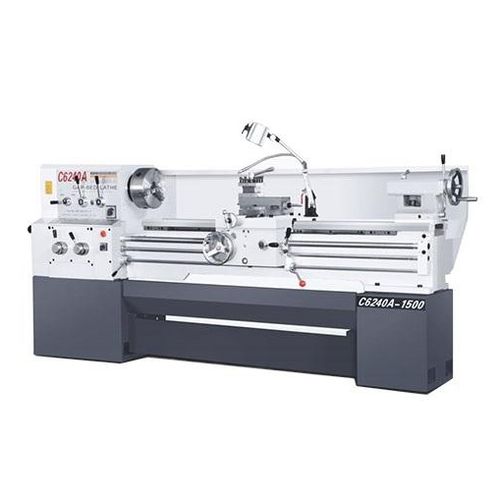

Conventional lathe C 40A series

horizontal

Model No. - C6140A distance between centers - 750mm/1000mm/1500mm swing over bed - 400mm swing over gap - 400mm swing over cross slide - 240mm taper of spindle bore - MT6 spindle bore - 46mm or 54mm step of spindle speeds - 12 of Forward and Backward range of spindle speeds - 50HZ:25-1600RPM(60HZ 30-2000RPM) range of cross feeds - 0.02-1.08mm 138 No. range of longitudinal feeds - 0.04-2.16mm 138 No. range of inch threads - 35 No. 80-1*3/4 range of metric threads - 30 No.0.4-20mm top slide travel - 140mm cross slide travel - 240mm tailstock quill travel - 130mm taper of tailstock quill - MT4 main motor - 4.5KW N.W./G.W. - 1350kgs(750mm)/1450kgs(1000mm)/1550kgs(1500mm) Model No. - C6240A distance between centers - 750mm/1000mm/1500mm swing over bed - 400mm swing over gap - 580mm swing over cross slide - 240mm taper of spindle bore - MT6 spindle bore - 46mm or 54mm step of spindle speeds - 12 of Forward and Backward range of spindle speeds - 50HZ:25-1600RPM(60HZ 30-2000RPM) range of cross feeds - 0.02-1.08mm 138 No. range of longitudinal feeds - 0.04-2.16mm 138 No. range of inch threads - 35 No. 80-1*3/4 range of metric threads - 30 No.0.4-20mm top slide travel - 140mm cross slide travel - 240mm tailstock quill travel - 130mm taper of tailstock quill - MT4 main motor - 4.5KW N.W./G.W. - 1350kgs(750mm)/1450kgs(1000mm)/1550kgs(1500mm)
