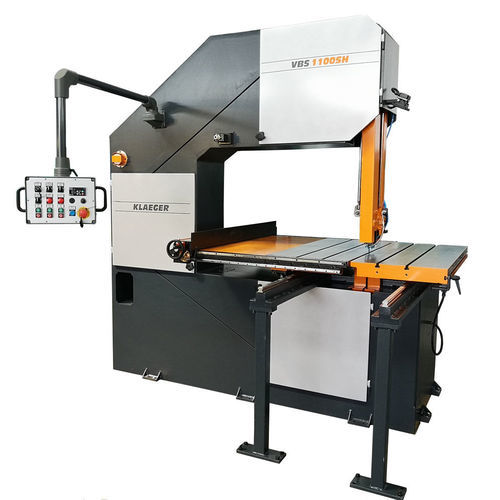

Band saw VBS 1100 SH

verticalfor steelfor aluminum

– hydraulic movable table (available also with fixed table) – high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc. KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more. Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop. Standard machine features • Continuous band speed • Digital speed display • Hardened and grinded sawblade guide • Height-adjustable guide arm • Cutting data table with lots of materials • Integrated LED workstation light • Hydraulic sawblade tension Cutting capacity Type of table - hydraulic table Cutting width - 1100 mm Cutting height - 535 mm Technical data Table size - 1000 x 1200 mm with 4 T-slots Table load capacity - 800 kg Sawblade length - 5670 mm Sawblade width - 27 or 34 mm Dimensions H/W/D - 2580 x 2300 x 2500 mm Weight - 2000 kg Colour - anthracite/silver RAL 7016 / RAL 9006 Drive specification - Drive motor, controlled electronically Cutting speed - "at a ratio of 1:10
(for example 100-1000m/min.)." Connected load - 5.5 kW; 7.5 A
