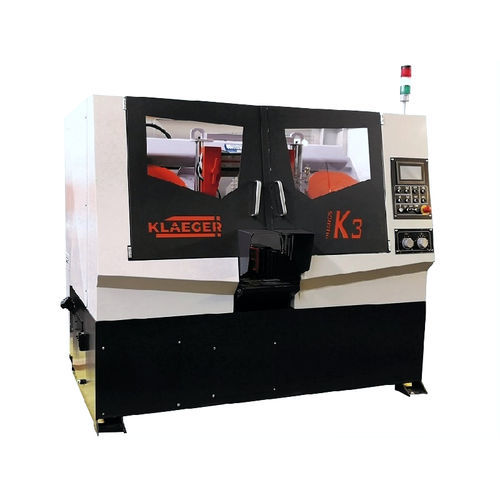

Band saw Pharos K3

horizontalfor steelfor stainless steel

Klaeger K line sawing machines, are the high productive and budget solution to cut common steels and tough materials (such as stainless steels, tool or mould steels). Machine features • Dual column head feed design, for superior tool rigidity and cutting tolerance • Fully enclosed machine design, for a safe and clean working environment, allowing at the same time extremely easy maintenance operations • Cutting parameters adjusted from the control panel (band speed set by controller and correct feed force suggested on the display) • Sturdy movable band guide for limited risk of band deviation • Full stroke clamping vices, requiring no adjustments • Index movement controlled by encoder, for an accurate and fast material positioning • Band cleaning brush and automatic chip conveyor for swarf removal • Large capacity coolant pump for high coolant delivery in the cutting area • Hydraulic band tension to always guarantee the proper band tension Cutting capacity Cutting capacity - 90° Technical data Drive three phase motor electronically controlled - 4,0 kW Cutting speed continuous - 20 - 100 m/min. Feed length in fully automatc operation per lift - 400 mm Residual length in semiautomatic operation - 20 mm Residual length in automatic operation - 100 mm Working height - 800 mm Sawblade tension - Hydraulic Sawblade dimensions - 3920 x 34 x 1,1 mm Dimensions HxWxD - 2100 x 2173 x 1845 mm Total weight - 2200 kg
