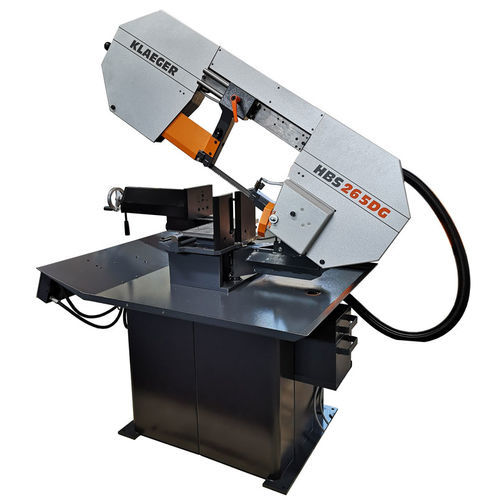

Band saw HBS 265 DG

horizontalfor metalsfor profiles

KLAEGER HBS band sawing machines: an absolute must for every workshop! These reliable band sawing machines stand out due to their easy and convenient handling. Despite their small dimensions they provide outstanding cutting performance: quality band sawing machines for all applications. The KLAEGER HBS range stands out due to its user-friendliness and durability. Machine features • Gravitational cutting mode • HBS 265 G: super fast mitring adjustment from 90°-30° right • HBS 265 DG: super fast mitring adjustment from 90°-45° left and right • Highly stable sawing frame with precise blade guide • Outstanding cutting capacity • All machines function on a clearly structured operating console • Easy and convenient handling utting capacity Cutting capacity - 90° - 75° le/ri - 60° le/ri - 45° le/ri - 30° left Technical data Motor power - 2,0 kW Cutting speed - 15 – 100 m/min. controlled electronically Operating voltage - 400 Volt 50 Hz three-phase current Working height - 950 mm Sawband dimensions - 3280 x 27 x 0,9 mm Dimensions HxWxD - 1580 x 930 x 1400 mm Total weight - 390 kg
