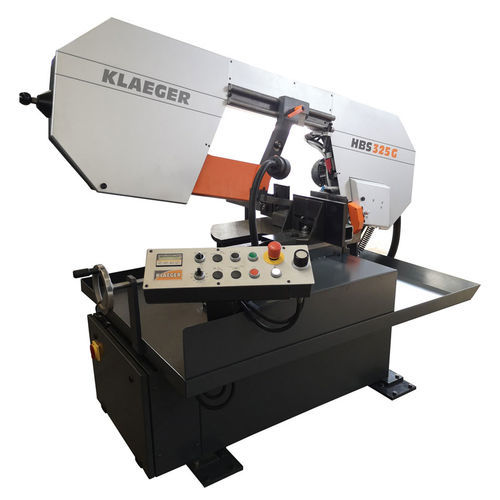

Band saw HBS 325 G

horizontalfor metalsfor profiles

KLAEGER HBS band sawing machines: an absolute must for every workshop! These reliable band sawing machines stand out due to their easy and convenient handling. Despite their small dimensions they provide outstanding cutting performance: quality band sawing machines for all applications. The KLAEGER HBS range stands out due to its user-friendliness and durability. Machine features • Gravitational cutting mode • Mitring adjustment super fast from 90°-30° right • Highly stable sawing frame with precise blade guide • Outstanding cutting capacity • All machine functions on a clearly structures operating console • Easy and convenient handling Cutting capacity Cutting capacity - 90° left - 75° left - 60° left - 45° left - 30° left Technical data Motor power - 2,0 kW Cutting speed - 15 - 100 m/min. controlled electronically Operating voltage - 400 Volt 50 Hz three-phase current Working height - 730 mm Sawband dimensions - 3770 x 27 x 0,9 mm Dimensions HxWxD - 1850 x 1100 x 1230 mm Total weight - 530 kg
