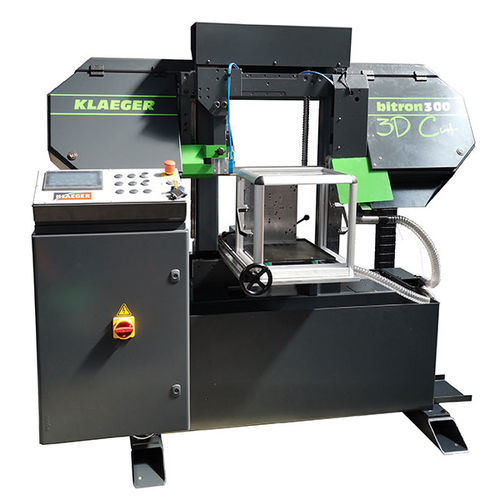

Band saw Bitron 300 3D Cut

horizontalfor aluminumfor steel

Cutting solution to separate the 3D printed parts from their baseplates. Easy, safe and fast Our sawing program completes finishing in laser melting with outstanding quality and unrivalled economic efficiency. It is also considerably faster than the conventional wire eroding machines. Rapid completion times and significantly lower procurement costs give you a competitive edge and make the cash register smile. • Twin-pillar semi-automatic bandsaw • For base plate dimensions up to 305×305 mm • Suitable for all materials (including 718/625, stainless steel, aluminium, titanium, cobalt chrome, gold, silver, special alloys, remanium alloys) Cutting capacity Cutting capacity - 90° Technical data Three-phase drive motor - 3,0 kW Electrical connection - 400 Volt 50 Hz; 5,1 A Continuous cutting speed - 15 - 100 m/min. electronically controlled Working height - 730 mm Sawblade tension - mechanical Sawblade dimension - 3950 x 34 x 1,1 mm Dimensions HxWxD - 2000 x 1100 x 1700 mm Total weight - 950 kg
