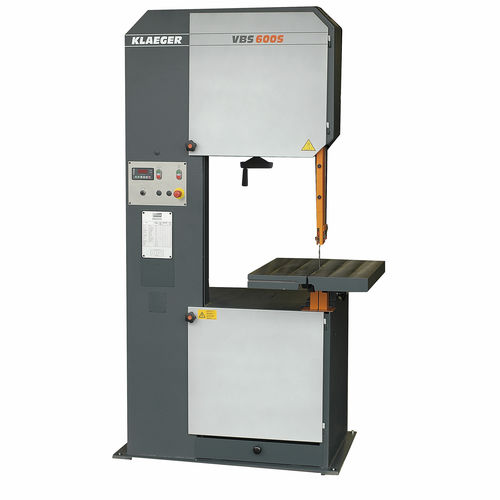

Band saw VBS 600 S

verticalfor steelfor aluminum

– fixed table (available also with manual table or hydraulic table) – high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc. KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more. Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop. Standard machine features - Continuous band speed - Digital speed display - Hardened and grinded sawblade guide - Height-adjustable guide arm - Cutting data table with lots of materials - Integrated LED workstation light Cutting capacity Cutting width - 600 mm Cutting height - 585 mm Technical data Table size - 600 x 760 mm Table load capacity - 500 kg Sawblade length - 5060 mm Sawblade width - 13 – 27 mm (*) Dimensions H/W/D - 2555 x 1410 x 1180 mm Weight - 720 kg Colour - anthracite/silver RAL 7016 / RAL 9006 Drive specification - Drive motor, controlled electronically Cutting speed - continuous 15-1000 m/min.
(only with max. 27 mm blade) Connected load - 4.0 kW; 7.5 A
