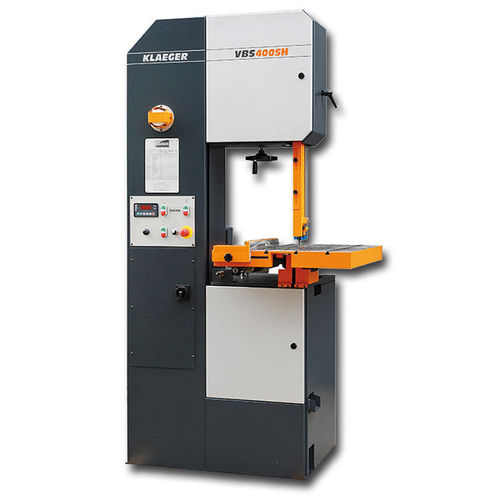

Band saw VBS 400 S

verticalfor aluminumfor steel

– fixed table (available also with manual table or hydraulic table) – high cutting speed (up to 1000 m/min.) which can be infinitely variably set electronically. Ideal for all materials from steel, non-ferrous metals, aluminium, etc. Available also with standard cutting speed to cut steel. KLAEGER vertical band saws are characterised by their rigid construction: stable work surface, balanced pulleys, clearly structured and user-friendly arrangement of the controls and much more. Cut to length, notching, separating and materials testing: a universal vertical bandsaw that is indispensable for every workshop. Standard machine features - Continuous band speed - Digital speed display - Hardened and grinded sawblade guide - Height-adjustable guide arm - Cutting data table with lots of materials - Integrated LED workstation light Cutting capacity Cutting width - 400 mm Cutting height - 420 mm Technical data Table size - 600 x 600 mm Sawblade length - 3600 mm Sawblade width - 4 – 20 mm Dimensions H/W/D - 2225 x 1120 x 770 m Weight - 460 kg Colour - anthracite/silver Drive specification - Three-phase motor, c Cutting speed - continuous 15-100 Connected load - 4.0 kW; 7.5 A
