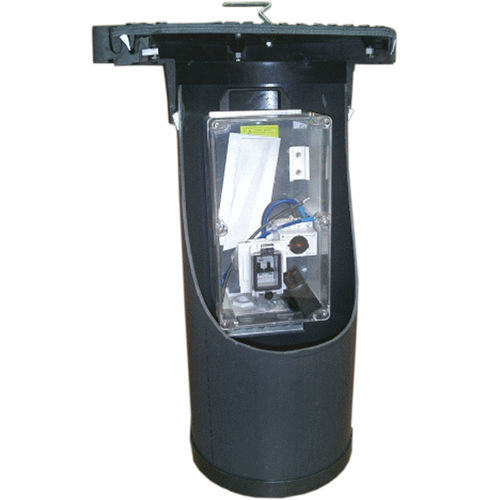

Surface mounted junction box

watertightreinforcedpolypropylene

Double siphoning system A locking system in 4 points Special marking to indicate electrical connection. DESCRIPTION Hermelock manhole covers are made of Polyurethane, reinforced with fiberglass with matching frame made of reinforced Polypropylene. xtremely suitable for electric power points for temporarily connections, connections for illuminated panels, for traffic lights etc. Product is delivered together with access chamber (round 315) with bottom Also included 2 sealrings to obtain watertightness, 1 to be putted into frame and 1 to create watertightness between frame and chamber Ø 315. Advantage product Watertight to drainage water by double siphon system. Resisting loads according to the standards EN-124 class B-125 Anti slippery design with little noise A smell-proof sealing (Double siphoning system) A locking system in 4 points Colour: Black Special marking to indicate electrical connection. Material Composite material Place of installation Group 2, class B125 →see EN124. For use in car parks and pedestrian areas where only occasional vehicular access is likely. Option Key KE1
