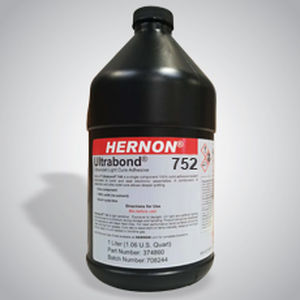

Acrylic adhesive Ultrabond® 752

for metalfor plasticsglass

Product Description Hernon® Ultrabond® 752 is a UV curable adhesive product that provides excellent adhesion to glass and to plastics such as polyester, PVC, cellulose acetate, or nylon. Product Benefits • 100% solid system (no solvents) • Excellent adhesion to a variety of surfaces • Excellent environmental resistance • Good gap filling properties • No shrinkage due to solvent evaporation • Rapid room temperature cure Typical Properties (Uncured) Property Value Chemical Type Modified Acrylic Ester Appearance Amber liquid Specific Gravity @ 25oC 1.10 Viscosity @ 25oC, cP 3500 to 5000 Flash Point See MSDS Typical Curing Performance Ultrabond®752 will cure rapidly at room temperature when exposed to high intensity ultraviolet light (365 nm). Fixture and Tack Free Time 100mW/cm² at 365 nm Property Value Fixture time, glass, seconds 5 Tack free time, seconds < 20 Typical Properties (Cured) Physical Properties Property Value Coefficient of thermal expansion, K-1 , ASTM D696 80 × 10-6 Coefficient of thermal conductivity, W/(m·K), ASTM C177 0.1 Hardness, Shore A, ASTM D2240 70 Temperature range, ºC, (ºF) -55 to 135 (-65 to 275) Electrical Properties Property Value Dielectric Strength, kV/mm,ASTM D149 36 Dielectric Constant at 1 kHz,ASTM D150 4.25 Dissipation Factor at 1 kHz,ASTM D150 0.03 Volume Resistivity, Ω·cm,ASTM D257 1.7 x 10
