Cryogenic valve 01313globepneumatically-operatedregulating
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatically-operated
- Function
- regulating
- Media
- for liquefied petroleum gas, for gas, for oxygen, for liquified gas, for liquefied natural gas
- Body
- bronze
- Applications
- cryogenic
- Other characteristics
- with seal, with cryogenic component
- DN
Max.: 50 mm
(1.969 in)Min.: 10 mm
(0.394 in)- Pressure
50 bar
(725.2 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -196 °C
(-321 °F)- Flow rate
Max.: 37 m³/h
(1,306.64 ft³/h)Min.: 2 m³/h
(70.63 ft³/h)
Description

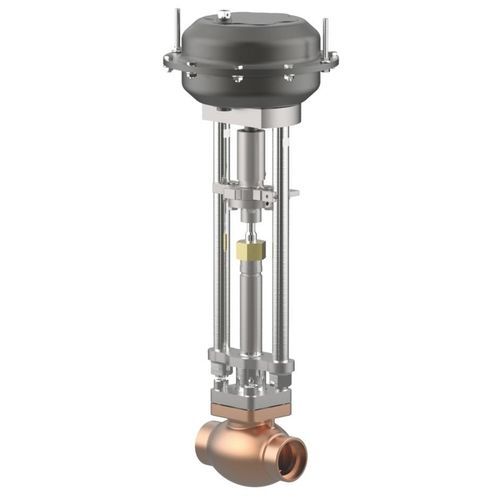

These cryogenic globe valves have a pneumatic actuator at PN 50. They have a bronze body and stainless steel topwork, with internal parts made from bronze. The actuator can be spring closed, air opened or on the contrary. The gland packing is "live loaded". The actuator is not cleaned or degreased for oxygen service.
