Cryogenic valve 01353globepneumatically-operatedregulating
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatically-operated
- Function
- regulating
- Media
- for liquefied petroleum gas, for gas, for oxygen, for liquified gas, for liquefied natural gas
- Body
- stainless steel
- Applications
- cryogenic
- Other characteristics
- socket weld, with butt weld ends, with cryogenic component
- DN
Max.: 80 mm
(3.15 in)Min.: 20 mm
(0.787 in)- Pressure
50 bar
(725.2 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -196 °C
(-321 °F)- Flow rate
Max.: 104 m³/h
(3,672.73 ft³/h)Min.: 4 m³/h
(141.26 ft³/h)
Description

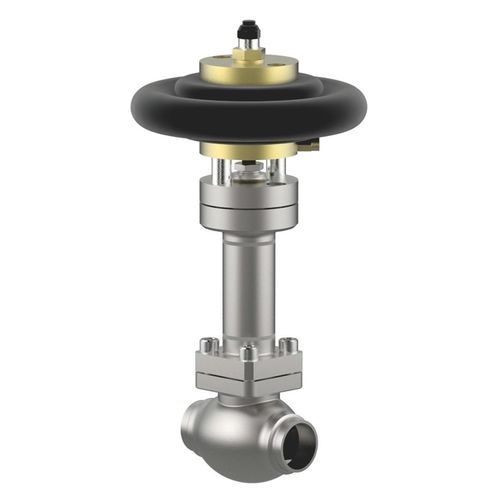

The 01353 is a cryogenic globe valve that is equipped with a pneumatic actuator. This PN 50 valve consist of a stainless steel housing and topwork while it can handle operations with air pressure up from 6 up to 10 bar.
The valve body delivers quality oxygen service due to its cleaned and degreased nature.
