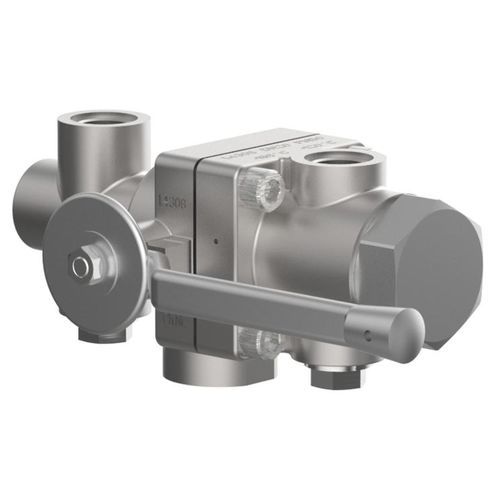

Diverter valve 06520ballleverfor oxygen
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- diverter
- Media
- for oxygen
- Body
- female-female
- Applications
- cryogenic
- DN
20 mm
(0.787 in)- Pressure
Max.: 38 bar
(551.1 psi)Min.: 1 bar
(14.5 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -196 °C
(-321 °F)- Flow rate
8 m³/h
(282.52 ft³/h)
Description
Cryogenic Divertor Valves are constructed from stainless steel and has brass-made inner parts. This valve is approved for operating in air gases, vapors and cryogenic liquefied gases. It also uses a PN50 flange and is designed to be installed by two safety valves meant for bursting disc connections. The unit is cleaned and greased off for oxygen service.
