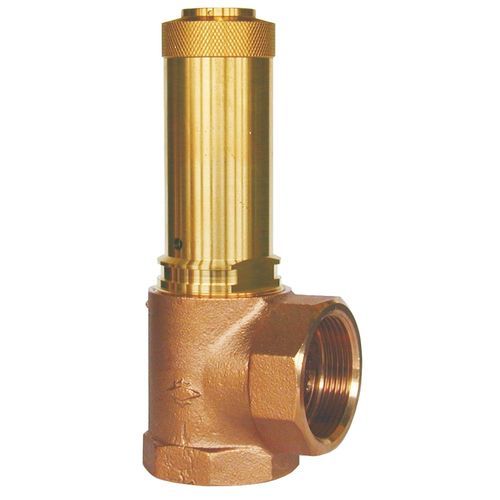

Air safety valve 06380for gasbronzeFPM
Add to favorites
Compare this product
Characteristics
- Fluid
- for air, for gas
- Body material
- bronze
- Valve plug seal material
- FPM
- Other characteristics
- threaded, right-angle
- Controlled pressure
Max.: 20,000 mbar
(290.1 psi)Min.: 200 mbar
(2.9 psi)- DN
Max.: 2 in
Min.: 0.5 in
- Flow rate
Max.: 3,940 m³/h
(139,139.79 ft³/h)Min.: 28 m³/h
(988.81 ft³/h)- Weight
Max.: 2,650 g
(93.48 oz)Min.: 240 g
(8.47 oz)
Description
The Type 06380 Safety Valve has a soft valve seal, open bonnet with lifting device. Part No. 06380.X.0000 has FPM valve seal for air and other gases. Part No. 06380.X.0300 contains PTFE valve seal for air and saturated steam from 2.0 up to 10.0 bar. Part No. 06380.X.0600 has EPDM valve seal for air and steam from 0.2 up to 8 bar.
