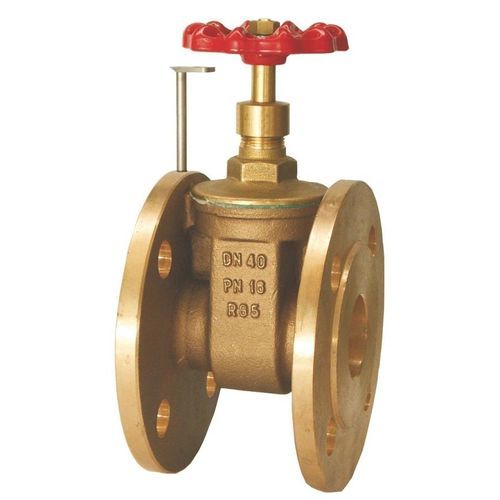

Gate valve 09420with handwheelfor LNGdouble-flange
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Media
- for LNG
- Body
- double-flange, bronze
- Other characteristics
- DIN
- DN
Max.: 100 mm
(3.937 in)Min.: 25 mm
(0.984 in)- Pressure
6 bar
(87 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -25 °C
(-13 °F)
Description
The Type 09420- Flanged Gate Valves feature a body made of bronze with a screwed top work in brass. The valves comes with maintenance-free gland packing or O-Ring. The flanged connection is in accordance to DIN EN 1092-3 PN16 with a non-rising stem.
