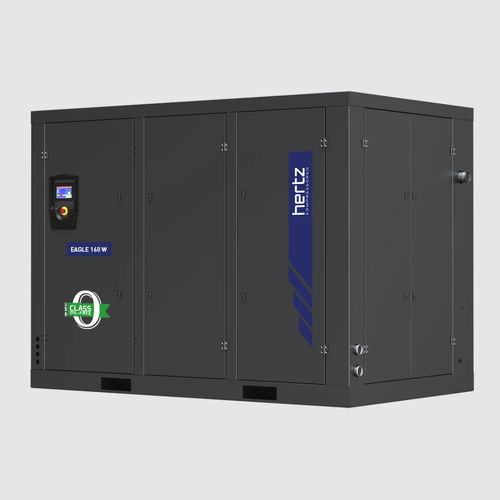

Rotary compressor AIGLE series airelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary
- Type
- air
- Power source
- electric
- Portability
- stationary
- Lubrication
- oil-free
- Other characteristics
- direct-drive, high-performance, electric
- Pressure
7 bar, 8.5 bar, 10 bar
(101.53 psi, 123.28 psi, 145.04 psi)- Flow
Min.: 4.8 m³/min
(169.51 ft³/min)Max.: 48.7 m³/min
(1,719.82 ft³/min)- Power
Min.: 35 kW
(47.59 hp)Max.: 315 kW
(428.28 hp)
Description
Completely oil-free compressed air according to ISO 8573-1 Class- ZERO. Compressors tested and approved by TUV Rheinland Germany.
High performance compliant with ISO 1217, Annex C/E
Direct-Drive driving system with efficient IE4 class electric motor and flexible coupling
Proven reliability
Easy to service, durable, powerful hydraulic actuated suction loader
Water separator for both of stages Minimized level of maintenance and running costs by trouble free production cycle
