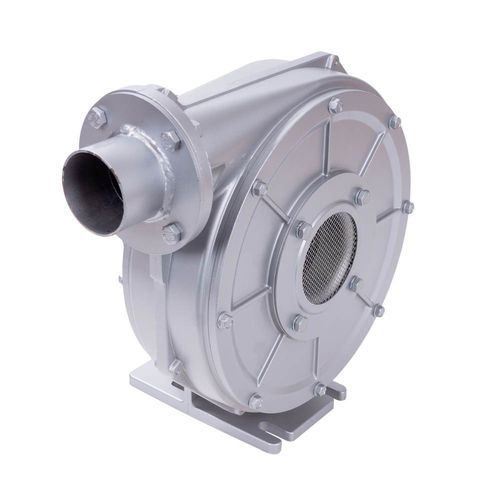

Air blower MD10

radialsingle-stageoil-free

H E R Z – medium-pressure blower: High performance at compact design Logical performance graduation Long service life with low operation costs High efficiency Favourable noise characteristics Robust and hydrodynamic housings Maintenance-free Compact design Completely oil-free The operating temperature of the standard medium-pressure blower may not exceed 80°C. Special Version are heat resistand up to 180°C or 230°C Special version also available with UL certification On request, the blowers are also available for utilisation with frequency converters for speed control. In this case, motors are provided with a phase separator. On request, the device can be provided with a PTC resistor, whose signal can be analysed using an optional tripping unit. Technical data are not changed. In the standard version the blowers are provided with a stainless steel filter on the intake side, which can be used again after it has been cleaned with compressed air. When a fine filter is used, the stainless steel filter can be removed.
