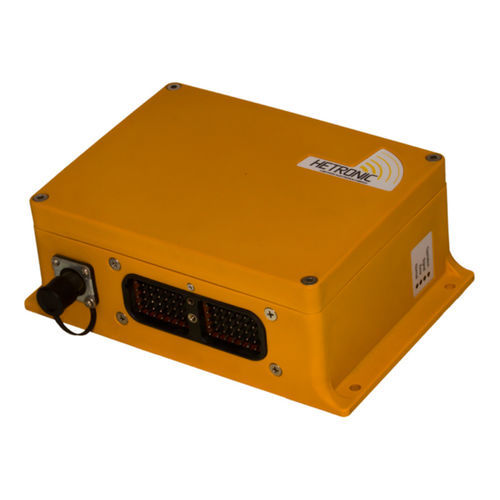

Digital receiver RX 28 PT-HLanalogRS232with relay output
Add to favorites
Compare this product
Characteristics
- Type
- digital, analog
- Interface type
- RS232
- Other characteristics
- with relay output, IP65
Description
The fully configurable RX 28 PT-HL proportional/digital receiver offers a step up in functional capability from the RX 14 PT-HL. RX 28 PT-HL offers two (2) Main Contact relays, one (1) isolated proportional analog output with safety relay, twenty-eight (28) switching relay digital outputs, four (4) on/off isolated DC/AC digital inputs and an RS232 control cable interface. The RX 28 PT-HL comes with a quick connect/disconnect 70 pol. connection and provides LED diagnostics for power/operation, transmission signal reception and main contact error. It can be supplied by either DC or AC power sources. Typical DC operating voltage range is 12VDC – 24VDC while AC operating voltage ranges from 48VAC – 240VAC.
