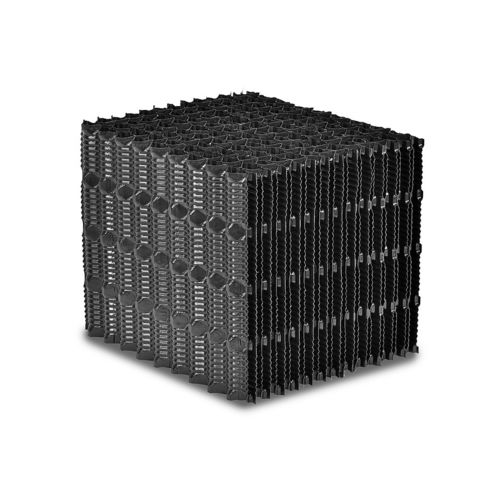

PP structured fill block VFC-20

for water treatmentfor cooling towers

VFC-20 VERTICAL FLAT FILM FILL Features High flexibility according to installation situation - Variable dimensions and different strength classes Optimised heat and mass transfer - Large effective surfaces and therefore high efficiency High mechanical stability and high load bearing capacity. - Stable connection points and wall strengths ensure accessibility High durability - Use of age-resistant, effective materials Complies with the highest fire protection regulations - Own formula using highly effective additives Standard dimensions: 2.400 x 300 x 510 (Length Width Height) Different dimensions are available upon request Channel opening: 20 mm Effective surface area: 125 m²/m³ Channel structure: Vertical, flat Material: Polypropylen (PP), Polyvinylchlorid (PVC) Operating temperatures: PP 97 % Flammability rating: ASTM E 84, UL 94, DIN 4102-B2 Features High-performance trickle fill installations are characterised by their high mechanical strength. This strength is determined by two special factors, on the one hand by the mechanical and extremely stable connection technology and on the other hand by the specially structured fill design. The VFC-20 circular fill can be produced in almost any strength class up to 40 kg / m³, so that, depending on the customer's requirements, the optimum design is available to suit the application. Particular attention is paid to environmental compatibility (solvent-free), simple and stable processing through our own welding technology as well as adhering to every fire protection requirement.
