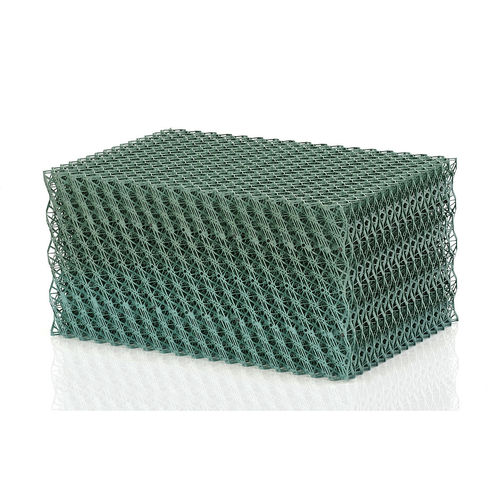

Cooling tower structured fill block

BIO TRICKLE GRID TYPE 20 Features High flexibility according to installation situation - Modular design Good stability up to the recovery of the ecosystem - Mechanical connection of the connection points Completely biodegradable - Use of ecological materials Standard dimensions: 910 x 600 x H: 450 (Length Width Height) Different dimensions are available upon request Channel opening: 2 x 20 (simple wave height 20 mm) Effective surface area: 125 m²/m³ Channel structure: Diagonal cross Material: 100% biologically degradable raw material (potato starch or corn) Operating temperatures: 97 % Features The BIO grid series 20 can be manufactured in 3 different ageing resistances, so that, depending on the ecosystem requirement, the grid structure will degrade within only a few months or after several years. Particular attention is paid to a 100% environmental compatibility as well as a simple and fast mechanical processing by means of patented assembly technology. Due to the open grid structure with a free volume of > 97%, these trickle fill installations are particularly suitable for every type of ecosystem.
