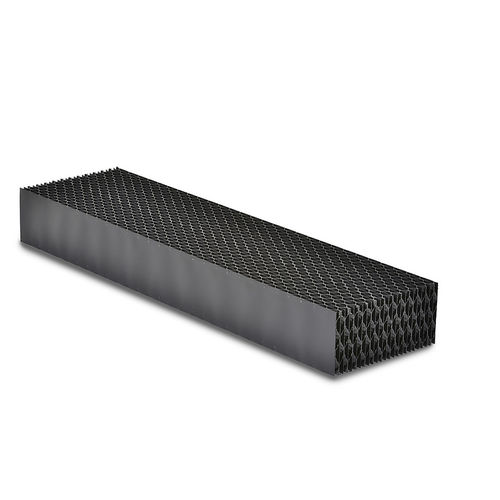

PP structured fill block CF 12F

for water treatmentfor cooling towers

CF 12F FILM FILL Features High flexibility according to installation situation - Variable dimensions and different strength classes Optimised heat and mass transfer - Large effective surfaces and therefore high efficiency High mechanical stability and high load bearing capacity. - Stable connection points and wall strengths ensure accessibility High durability - Use of age-resistant, effective materials Complies with the highest fire protection regulations - Own formula using highly effective additives Standard dimensions: 2.400 x 300/600 x 150 (Length Width Height) Different dimensions are available upon request Channel opening: 12 mm Effective surface area: 350 m²/m³ Channel structure: Diagonal Material: Polypropylen (PP) Operating temperatures: 97 % Features High-performance trickle fill installations are characterised by their high mechanical strength. This strength is determined by two special factors, on the one hand by the mechanical and extremely stable connection technology and on the other hand by the specially structured fill design.The thick edges of the fill show significantly higher strengths compared to fills produced from a far outdated flat film construction. The welding machines which we developed enable us to process individual fills which are suitable for permanent use as well as on construction site production. Due to the optimised fill design with a free volume > 97%, these fills can be used for very clean and slightly contaminated water qualities.
