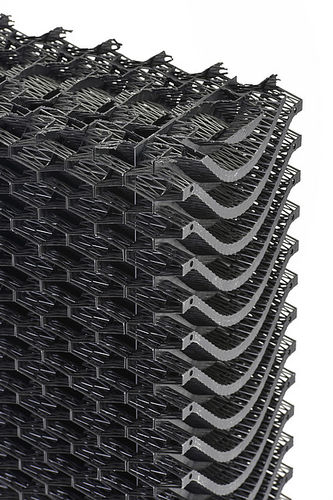

PP structured fill block AK 100

for water treatmentfor cooling towers

AK 100 COOLPAD Features High flexibility according to installation situation - Variable dimensions Cleaning polluted drains, very little erosion - Increased service life and low replacement requirements High mechanical stability and high load bearing capacity - Stable connection points and wall strengths ensure accessibility High durability - Use of age-resistant, effective materials Standard dimensions: 2000 x 600 x 100 (Length Width Height) Different dimensions are available upon request Channel opening: 20 mm Effective surface area: < 270 m²/m³ Channel structure: Wave form Material: Polypropylen (PP) Operating temperatures: 95 % Features High-performance trickle fill installations are characterised by their high mechanical strength. This strength is determined by two special factors, on the one hand by the mechanical and extremely stable connection technology and on the other hand by the specially structured fill design. Particular attention is paid to environmental compatibility (solvent-free), simple and stable processing through our own welding technology as well as in a framed upright installation position. In addition, these fittings can be cleaned after use with a high-pressure cleaner and therefore reusable. Due to the optimised fill design, these Coolpad fills can be used for very clean and slightly contaminated water qualities.
