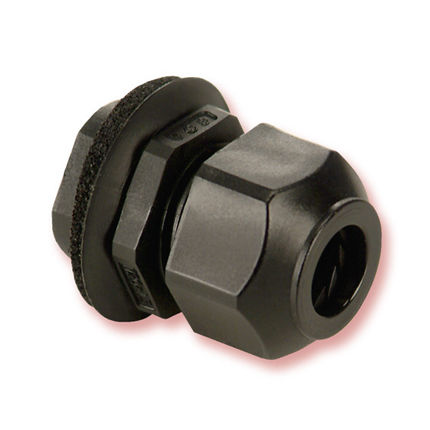

Plastic cable gland LTRSCG series

waterproofstrain reliefdouble

Straight-Thru, Snap-In Hubs For Panels from .062" (1,6 mm) to .125" (3,2 mm) Thick The Ultimate in Liquid Tight Strain Relief Protection FEATURES - Easy installation—unique fingers securely snap into a range of panel thicknesses – up to .125" (3,2 mm) – with no tools or locknuts required. - Sealing flange prevents sealing washer displacement due to water velocity to ensure a liquid tight IP 65. - Eliminate need for locknut or threaded hole to achieve liquid tight seal at panel; perfect for low clearance installation where locking nut access is limited. - Ratchet design of sealing nut assembly provides superior anti-vibration and ensures a firm grip on the cable. - Foam washer included. - Rotation prevented when used in Double D mounting holes. - For Double D Mounting Hole Punches. - Available in multiple sizes for flexible cord diameters ranging from .065" (1,7 mm) to .920" (23,4 mm). - We recommend using the fitting with the smallest maximum diameter that will fit your application. - Consult Heyco for cordgrips molded in other colors. QuickSpecs Material Nylon 6/6 w/Buna N or TPE Sealing Gland Certifications Recognized under Components Program of Underwriters' Laboratories File E51579 Certified by Canadian Standard Association File 93876C Flammability Rating 94V-2 IP Rating IP 65
