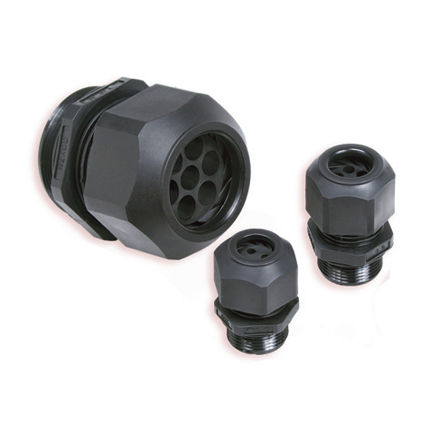

Nylon cable gland LTC series

waterproofthreadedstraight

Heyco®-Tite Liquid Tight Cordgrips Multi-Hole with Integral Sealing Ring Sequenced by Conductor Size The Ultimate in Liquid Tight Strain Relief Protection FEATURES - Heyco® Multi-hole glands provide the widest range of conductor through-hole size and number configurations, many of which are agency approved. See the tabular charts for specific approvals for specific parts. These approvals are not "global" or implied approvals; they are both real and part specific. - Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole locaton, every time. - IP 68 rated. - Cordgrips are made of nylon construction with TPE sealing glands that resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. - For body part dimensions see NPT, PG and Metric Cordgrips. - Multi-hole glands are only to be used with Heyco Liquid Tight Cordgrips and are not sold separately. - Consult Heyco for Cordgrips molded in other colors. QuickSpecs Material Nylon 6/6 w/TPE Sealing Gland Flammability Rating 94V-2 Standard IP Rating IP 68
