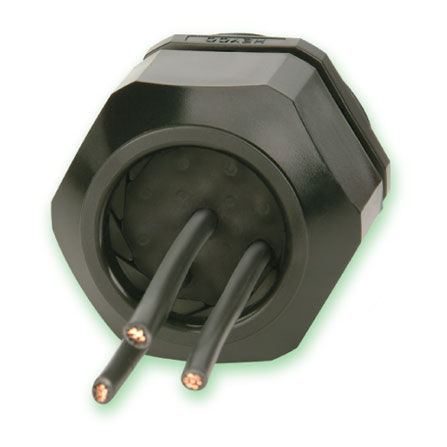

Metal cable gland Masthead® II

nylonIP68strain relief

Heyco®-Tite Solar Masthead® II Liquid Tight Cordgrips Multi-Hole, NPT Hubs with Integral Sealing Ring IP 68 Rated The Ultimate in Liquid Tight Strain Relief Protection FEATURES - Break-Thru Skinned-Over glands in the Solar Masthead II Cordgrips offer flexibility to use from 1 to 31 of the available holes while still providing a liquid tight seal around the wire. - IP 68 Rated. - Approved for NEMA 4, 4X, 6 and 6P applications. - Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time. - Provide a watertight seal for PV module output leads to inverters. - Designed for solar rooftop or combiner box installations. - Secure input PV leads from solar panel array strings to fuse holder hookup within solar combiner boxes. Suitable for use with USE-2 and PV Cable. UV resistant nylon construction with TPE Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. No disassembly required for installation. Generous wrenching flats for ease of assembly. Solar Masthead II Cordgrips provided with assembled metal locknut. Contact Heyco for other sizes and gland configurations. QuickSpecs Material Nylon 6/6 with TPE sealing gland Certifications - Listed under Underwriters' Laboratories File E51579 Recognized under the Component Program of Underwriters' Laboratories File E51579 to both Canadian and U.S. requirements Certified by the Canadian Standards Association File 93876 Flammability Rating 94V-2
