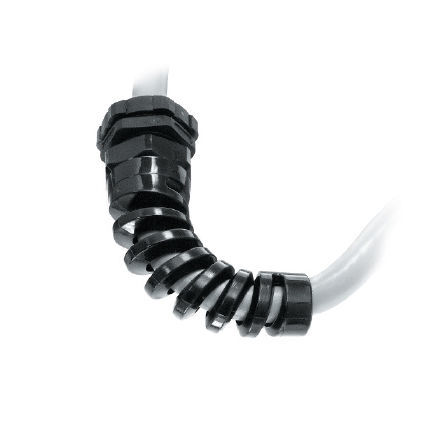

Nylon cable gland Flex RLTCG series

waterproofvibration-resistantthreaded

Pigtail™, PG* Hubs with Integral Sealing Ring The Ultimate in Liquid Tight Strain Relief Protection FEATURES - Flexible Pigtail extender prevents sharp bends and extends cable life. - Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time. - Widest range of approved cable diameters. - IP 68 rated. - Approved for NEMA 4, 4X, 6 and 6P applications. - Ratchet design of sealing nut assembly provides superior anti-vibration protection and ensures a firm grip on the cable. - Acme threads on body prevent skipping and speed installation. - All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.) - Multiple sizes for flexible cord diameters ranging from .065" (1,7 mm) to .705" (17,9 mm). - We recommend using the fitting with the smallest maximum diameter that will fit your application. - Unassembled Nylon Locknuts INCLUDED. - For Heyco Liquid Tight Threaded Plugs. - Consult Heyco for cordgrips molded in other colors QuickSpecs Material Nylon 6/6 w/Buna N or TPE Sealing Gland Certifications Listed under Underwriters' Laboratories File E51579 Recognized under Components Program of Underwriters' Laboratories File E51579 Certified by Canadian Standard Association File 93876C Approved for NEMA 4, 4X, 6 and 6P applications Flammability Rating 94V-2 IP Rating IP 68 (70 PSI, 5 BAR)
