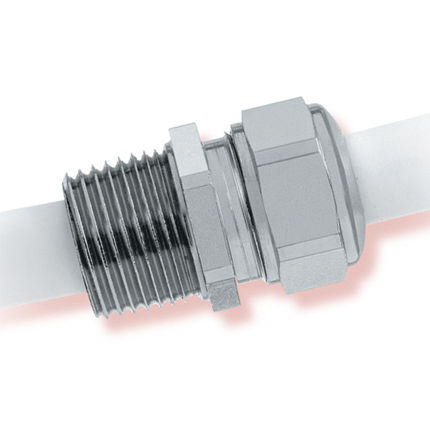

Nickel-plated brass cable gland 456 series

brasswaterproofthreaded

Straight Thru, NPT Hubs The Ultimate in Liquid Tight Strain Relief Protection FEATURES - Nickel plated brass construction for superior protection of flexible cables. - Nickel-plated finish over brass provides excellent corrosion resistance and durability. - IP 68 rated. - For use in threaded holes. - Multiple sizes for flexible cord diameters ranging from .118" (3,0 mm) to 2.047" (52,0 mm). - We recommend using the smallest cordgrip that accommodates your cable size. - Sealing gland is molded in Thermoplastic Polymer Elastomer (TPE) Material. - NFPA parts feature a special TPE Gland tested for heat release and smoke emission (ASTM E 1354) and smoke toxicity (SMP 800). - Consult Heyco for availability of NFPA certified Brass Liquid Tight Cordgrips in Pg and Metric hubs. - DFARS Compliant QuickSpecs Material Nickel-Plated Brass w/TPE Sealing Gland Certifications Certified by UL for Compliance with both Canadian and U.S. requirements under File E51579 NFPA parts: Certified in accordance with American Standard NFPA 130 and European EN 45545-2 Recognized under the Component Program of Underwriters' Laboratories File E51579 to both Canadian and U.S. requirements IP Rating IP 68, IP 69K
