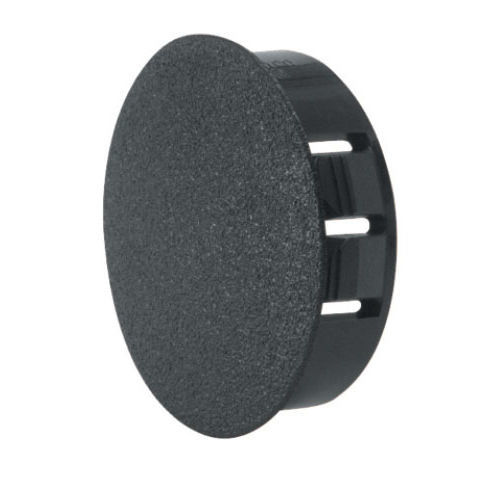

Round plug DP seriesdomemalenylon
Add to favorites
Compare this product
Characteristics
- Form
- round, dome
- Type
- male
- Material
- nylon
- Other characteristics
- snap-on, lock
- Diameter
Min.: 4.7 mm
(0.185 in)Max.: 63.5 mm
(2.5 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 105 °C
(221 °F)
Description
- Close unneeded panel holes and electrical knockouts.
- Quick and easy installation.
- Convex, matte finish head tapers to thin edge (Except DP-187).
- Lock firmly into panel up to .250" (6,4 mm) thick.
- Locking fingers in fractional increments up to the maximum panel thickness.
- Approximate Head Thickness: .062" (1,6 mm). Thickness may vary.
- For Snap-In Metric Dome Plugs.
QuickSpecs
Material Nylon 6/6
Certifications
Recognized under the Component Program of Underwriters' Laboratories File E51579
Certified by the Canadian Standards Association File 8919
Flammability Rating 94V-2
