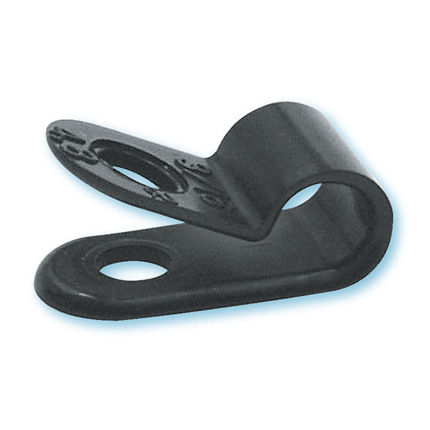

Nylon cable clamp CCH series

P

- For clamping cable or tubing securely into place. - Resist corrosion, salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL certification or testing.) - All parts are size marked in inches and millimeters. - Standard material Nylon 6/6. 94V-0 available, consult Heyco. - Arrow Clips and Push-In Fasteners are available and suitable for securing Heyco Cable Clamps. For rivets see HEYClip™ Nylon Snap Rivets, HEYClip™ Countersunk Type "H" Rivets, HEYClip™ Push (aka Drive) Rivets, HEYClip™ Releasable Type "T" Rivets, and HEYClip™ Drive Fasteners - For Snap Rivets compatible with Heyco Cable Clamps, see the Snap Rivet Table. QuickSpecs Material Nylon 6/6 Certifications Recognized under the Component Program of Underwriters' Laboratories File E54523 Flammability Rating 94V-2 Temperature Range 32°F (0°C) to 221°F (105°C) - Black 32°F (0°C) to 185°F (85°C) - Natural
