Gantry type CNC milling machine P-S-F (15-13)M
5-axisverticalwith moving table

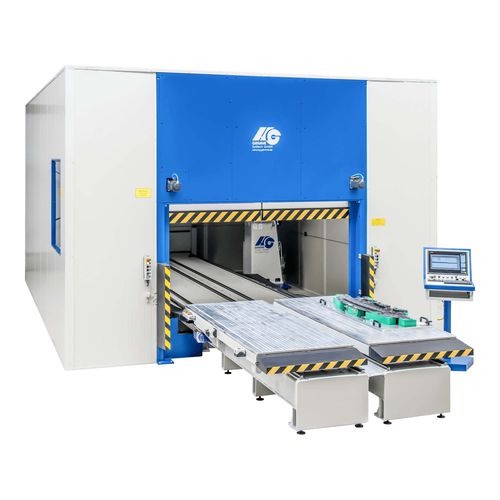

Gantry type CNC milling machine - P-S-F (15-13)M - HG GRIMME SysTech GmbH - 5-axis / vertical / with moving table
Gantry type CNC milling machine - P-S-F (15-13)M - HG GRIMME SysTech GmbH - 5-axis / vertical / with moving table
Gantry type CNC milling machine - P-S-F (15-13)M - HG GRIMME SysTech GmbH - 5-axis / vertical / with moving table - image - 2
Gantry type CNC milling machine - P-S-F (15-13)M - HG GRIMME SysTech GmbH - 5-axis / vertical / with moving table - image - 3
Gantry type CNC milling machine - P-S-F (15-13)M - HG GRIMME SysTech GmbH - 5-axis / vertical / with moving table - image - 4
Gantry type CNC milling machine - P-S-F (15-13)M - HG GRIMME SysTech GmbH - 5-axis / vertical / with moving table - image - 5
Gantry type CNC milling machine - P-S-F (15-13)M - HG GRIMME SysTech GmbH - 5-axis / vertical / with moving table - image - 6
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Structure
gantry type, with moving table
Machined material
for aluminum, for PVC, for composites
Associated functions
drilling
Applications
for the plastics industry, for the aeronautical industry, for the automobile industry, for large workpieces, for aeronautics, for the mold industry, for model making, CAD/CAM, for PVC window profiles, for profiles
Other characteristics
compact, high-speed, high-performance, precision, high-precision, with automated loading, high-productivity, high-speed, HSC, high-power, direct-drive, with pneumatic clamping, with automatic tool changer
X travel

Max.: 3,100 mm
(122.05 in)

Min.: 1,600 mm
(62.99 in)

Y travel

Max.: 5,100 mm
(200.79 in)

Min.: 1,600 mm
(62.99 in)

Z travel

Max.: 1,400 mm
(55.12 in)

Min.: 910 mm
(35.83 in)

Rotational speed

Max.: 26,000 rpm
(163,363 rad.min-1)

Min.: 24,000 rpm
(150,796 rad.min-1)

Power

Max.: 9 kW
(12.24 hp)

Min.: 3 kW
(4.08 hp)

Table load capacity

Max.: 800 kg
(1,764 lb)

Min.: 300 kg
(661 lb)

Description

CNC machining center in gantry design | 5-axis CNC milling machine in gantry design | Depending on the equipment of the CNC machine, two tables or one table are possible. Individual and high precision for model and mold making. The 5-axis milling head with direct measuring system stands for optimal spatial machining. The clamping of the two rotary axes ensures absolute stability during milling even with heavy cutting. The CNC milling machine performs excellent contour fidelity even during milling operations with high feed rates. Ease of operation is ensured by simple menu navigation of the high-performance Siemens Sinumerik 840D/ SL Operate CNC control. The portal CNC machine shines with low maintenance costs. The low-maintenance components are optimally matched to each other. . The portal construction is made of a torsion-resistant cast iron construction. In dry machining, the CNC machine is suitable for milling all plastics such as PU, Ureol and also for composite materials such as CFRP, GFRP and aluminum.
