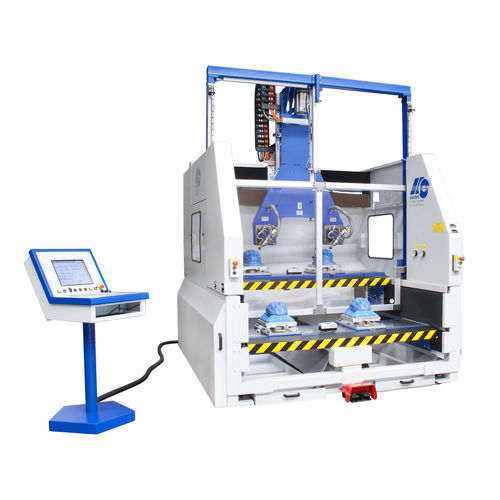

5-axis CNC milling machine RT-F /DUOswiveling-spindlerotating tablefor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- swiveling-spindle
- Structure
- rotating table
- Machined material
- for aluminum, for PVC, for composites
- Associated functions
- drilling
- Applications
- for the automobile industry, for the aeronautical industry, for aeronautics, desk, for the mold industry, for model making, for the plastics industry, CAD/CAM, for PVC window profiles, for profiles, for small workpieces
- Other characteristics
- high-speed, compact, high-performance, precision, high-precision, high-productivity, high-speed, HSC, with automatic tool changer
- X travel
340 mm
(13.39 in)- Y travel
700 mm
(27.56 in)- Z travel
440 mm
(17.32 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 36,000 rpm
(226,195 rad.min-1)- Power
6.5 kW
(8.84 hp)- Table load capacity
100 kg
(220 lb)
Description
Two milling spindles, four circular tables, zero downtime
Two milling spindles tool two work pieces simultaneously on one shuttle table level equipped with two synchronously running circular tables. During milling operation, the operator can unload and reload the other shuttle table level which is also equipped with two synchronously working circular tables, working safely and with ease. No downtimes, doubled production output and outstanding results define the special performance of this compact machining centre.
- Rotating axis C ± 185°
- Swivelling axis A ± 185°
- CNC control NUM
Zwei Frässpindeln bearbeiten auf einer Shuttletischebene mit zwei synchron laufenden Rundtischen zeitgleich zwei Bauteile. Der Maschinenbediener kann während des Fräsvorgangs die andere Shuttletischebene (ebenfalls mit zwei synchron arbeitenden Rundtischen) mit zwei weiteren Bauteilen bequem und sicher entnehmen und sofort wieder neu bestücken. Keine Leerzeiten, Verdoppelung der Teileproduktion und exzellente Ergebnisse machen die Performance dieses kompakten Bearbeitungszentrums aus.
