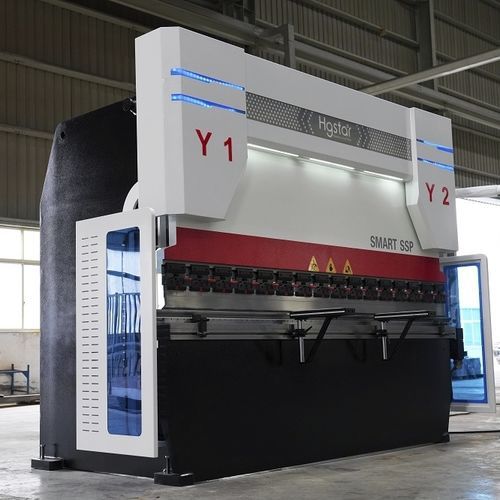

Electro-hydraulic press brake HG-SSP 175/3200

CNC4-axis6-axis

Machine configuration: Y1-Y2-X-R-V five-axis CNC Equipped with the special CNC system for DA53T bending machine from DELEM, the Netherlands Equipped with German BOSCH-REXROTH high-performance proportional servo hydraulic system Configure the grating ruler of SPAIN FAGORcompany Configure the oil pump of SUNNY, USAcompany The mechanical downward inclined block deflection compensation worktable controlled by the DNC system The back gauge is equipped with high-performance servo motor and ball screw A set of standard molds The X-axis rear retaining frame is composed of left and right guide rail seats, beams, adjusting seats, supports, adjustable supports, seat plates, adjusting seats, adjusting screws, retaining fingers and other parts. The control of X-axis movement is realized through the servo motor of X-axis. The rear stopper of R-axis is composed of guide rail seat, R-axis motor and reducer, and drives the cross beam along the The linear guide moves up and down. The control of the R-axis movement is realized by the servo motor of the R-axis The main motor is a high-performance servo motor, which adopts the full closed-loop electro-hydraulic servo system to supply oil as required The force and flow signals are sent to the analog signal end of the driver, and the flow is tracked in real time through the feedback of pressure sensor and speed sensor Size and pressure change, feedback the monitoring signal to the driver for rapid processing and correction, which is a closed-loop non-overflow first Enter the control method. The advantages are energy saving, low oil temperature, environmental protection and high efficiency.
