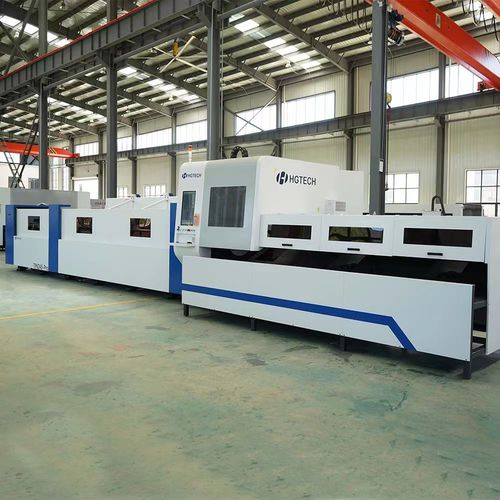

Laser cutting machine Smart TUBE6245

for metaltubehigh-precision

SMART TUBE6245 laser pipe cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry. It has strong cutting capacity, “flying” cutting speed, ultra-high stability, high-quality processing, extremely low operating costs, and super high adaptability. 16-25mm machine bed is cut from whole steel panel with heat and aging treatment, milled by Italy COLGAR machining center with high precision, good stability, no deformation; the bed will be put in furnace to heat to 600 degree and keep temperature to 200 degree for a week and then be taken out for cooling naturally. Material Unloading5 pcs of automatically adjustable pneumatic carrier wheel brackets, suitable for 20-220mm different types of pipe diameter to ensure the longer size of the pipe clamp accuracy due to its flexing. carrier wheel bracket size is adjustable with marking scale. When you need to lift pipe, the corresponding wheel bracket will rise. When the X-axis moves near to the corresponding rack, it will automatically fall down to avoid interference. The unloading feeding system is also equipped with pneumatic carrier wheel bracket. When the required material is hoisted, the corresponding material supporter will rise. When the cutting is complete, the corresponding supporter will automatically fall down, and the material receiving holder has the automatic turnover function.
