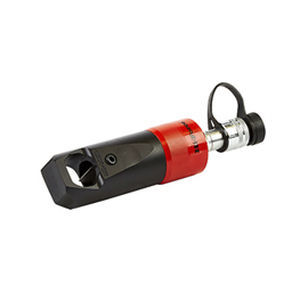

Hydraulic nut splitter NS Series

The improved NS range of hydraulic nut splitters offers a choice of 5 models suitable for hexagon nut AF sizes from 17 to 75 mm (M10 to M48 bolt sizes). The revolutionary design incorporates a hardened steel linkage that ensures the blade cutting edge is kept parallel to the nut throughout the splitting process which improves operational efficiency and more importantly, blade life. Designed to easily split corroded nuts up to RC44 hardness, Hi-Force nut splitters offer the ideal ‘cold cut’ solution for removing worn or corroded fasteners, especially in applications where ‘hot work’ permits are not allowed. Nut AF sizes from 17 to 75 mm Bolt sizes from M10 to M48 Working pressure 700 bar Spring assisted return Angled body design for increased clearance on flanges and flat surfaces High quality steel construction Designed to fit on most API and ANSI flanges Compact and easy to use Optional 360° positional swivel coupling for fitment in confined spaces, available for use with NS104 and NS110 only
