Diaphragm pump CD-8S
for chemicalsairelectric

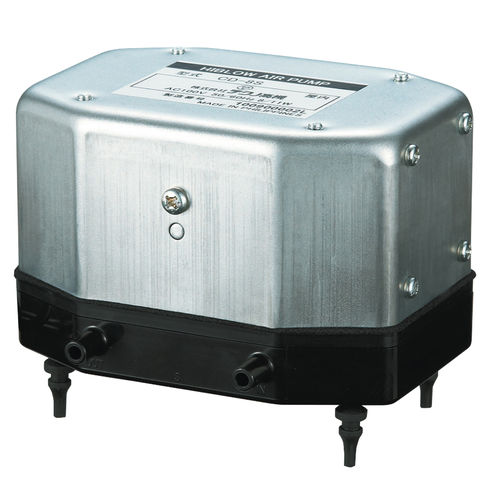

Diaphragm pump - CD-8S - HIBLOW - for chemicals / air / electric
Diaphragm pump - CD-8S - HIBLOW - for chemicals / air / electric
Diaphragm pump - CD-8S - HIBLOW - for chemicals / air / electric - image - 2
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
for chemicals, air
Operation
electric
Mobility
stationary, mobile
Domain
industrial, chemical
Voltage
230 V, 120 V
Flow

13 l/min, 17 l/min
(3.43424 us gal/min, 4.49092 us gal/min)

Pressure

Min.: -35,000 Pa
(-5.076 psi)

Max.: 35,000 Pa
(5.076 psi)

Power

8 W, 11 W
(0.01 hp, 0.01 hp)

Length

105 mm
(4 in)

Width

75 mm
(2.95 in)

Height

73 mm
(2.87 in)

Weight

0.74 kg
(1.63 lb)

Description

Pressure & vacuum Type Built-in use *No power plug included because it is designed for built-in use. *Rubber-made legs are sharp-pointed. Not for self-standing installation. • Air mat, air bed (continuous air exhaust) • Air bearing • For burner (air supply) • Scientific & chemical instruments (analysis and agitation)

Catalogs

CD-8S
CD-8S
1 Pages
