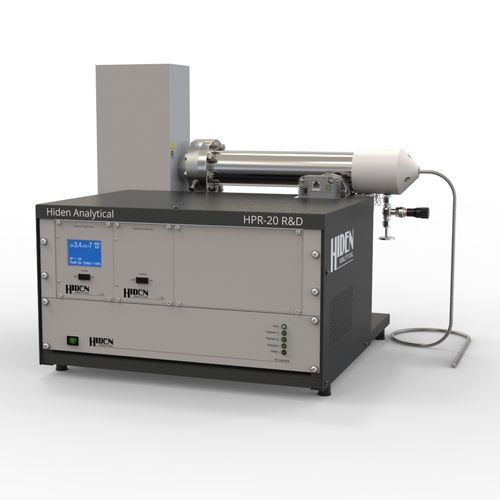

Mass spectrometer HPR-20 R&D

monitoringfor gas analysisbenchtop

A specialist gas analysis system for advanced research The Hiden HPR-20 R&D specialist gas analysis system is a bench-top mass spectrometer for the monitoring of evolved gases and vapours. Thermal analysis TA/MS Catalysis Fuel cells CVD / MOCVD / ALCVD Environmental monitoring Glovebox monitoring Gas separation studies Mud logging (oil exploration) Near atmospheric XPS, APXPS A triple filter mass spectrometer is included providing improved resolution and abundance sensitivity with an ultimate detection limit of 5 ppb subject to spectral interference. The HPR-20 R&D is offered with a wide range of interfaces for connection to thermal equipment and is configured with Hiden’s heated Quartz Inert Capillary (QIC) for continuous sampling of gases and vapours. Backing and bypass pumping is provided by a high performance scroll pump. Gas sampling is continuous with a gas sample flow rate user configurable/selectable in the range 20 ml/min. Triple filter mass spectrometer Mass range options 200, 300, 500 or 1000 amu Enhanced abundance sensitivity Detection to 5 ppb APSI-MS soft ionisation mode
