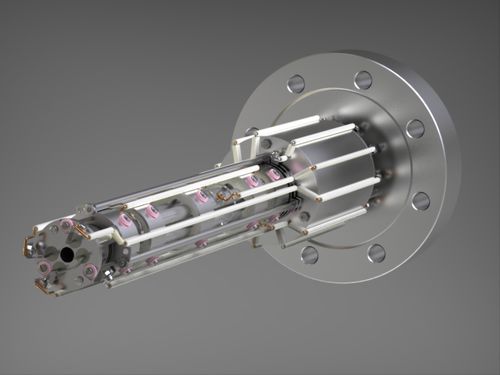

Quadrupole spectrometer DLS-10

for gas analysislaboratoryfor process monitoring

The DLS-10 mass spectrometer is for ultra high resolution mass spectrometry of hydrogen isotopes, operating in the quadrupole stability zone H, to give mass separation of Helium and Deuterium. Fusion research Isotope studies Synchrotron studies Nanotechnology Residual gas analysis The DLS-10 quadrupole analyser is a precision assembled triple mass filter with unique, independently driven RF only secondary filter stages preceding and following the primary mass filter. A radially symmetric electron impact ioniser with twin oxide coated iridium filaments and a dual Faraday / single channel electron multiplier detector are included as standard. Mass range is 1-10 AMU operating in the quadrupole stability zone H with FWHM =0.006 amu. Triple Filter mass spectrometer operating in zone H Mass range 1- 10 amu Ultra High abundance sensitivity Resolution adjustable from unit mass to 0.006 AMU- FWHM The combination of a 6 mm pole diameter micron precision mass filter, and the high frequency RF at low mass range is ideal for analysis of He and H isotopes.
