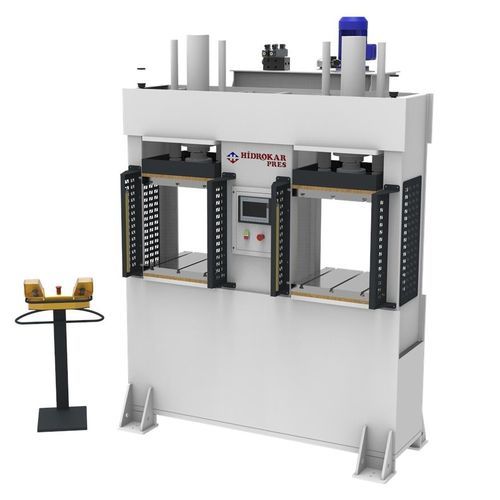

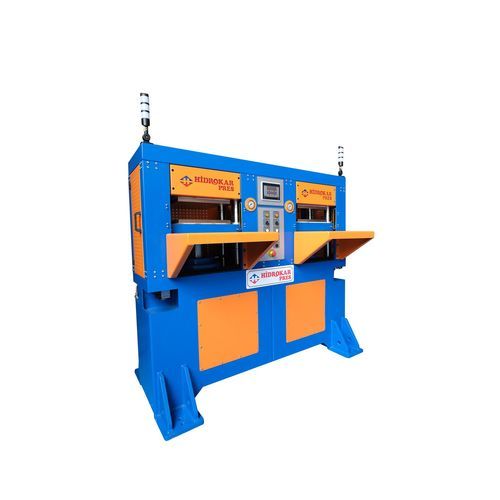

Hydraulic press HKHmotorizedformingH-frame
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, motorized
- Function
- forming
- Structure
- H-frame, double
- Control
- automatic
- Other characteristics
- hot
- Applications
- rubber
- Force
30 tf, 60 tf, 100 tf, 150 tf, 200 tf
- Opening
Max.: 500 mm
(20 in)Min.: 400 mm
(16 in)- Stroke
500 mm
(19.685 in)- Table width
400 mm, 500 mm, 600 mm
(16 in, 20 in, 24 in)- Table length
400 mm, 500 mm, 600 mm
(16 in, 20 in, 24 in)- Working speed
3 mm/s, 4 mm/s
- Return speed
20 mm/s, 22 mm/s, 24 mm/s, 40 mm/s
- Approaching speed
Min.: 8 mm/s
Max.: 13 mm/s
- Hydraulic pump power
Min.: 5 kW
Max.: 11 kW
- Overall length
1,790 mm, 1,850 mm, 1,910 mm, 1,950 mm, 2,100 mm
(70 in, 73 in, 75 in, 77 in, 83 in)- Overall width
1,035 mm, 1,070 mm, 1,150 mm, 1,250 mm, 1,375 mm
(41 in, 42 in, 45 in, 49 in, 54 in)- Overall height
2,535 mm, 2,600 mm, 2,700 mm, 2,770 mm, 2,850 mm
(100 in, 102 in, 106 in, 109 in, 112 in)
Description
Heated molding process with adjustable pressure, temperature, speed and timing. It doubles and accelerates production capacity with two stations working independently of each other. Prioritizing customer and operation-oriented production offers customizable production opportunities.
STANDARD FEATURES
Robust steel construction
Hydraulic unit requiring minimum maintenance
Emergency stop button
Hydraulic safety system
Electrical safety system
CE certification
User manual
Heated table
Table insulation kit
Button control
OPTIONAL FEATURES
PLC control system
HMI touch screen
Proportional valve system
Light barrier
Safety cage
Tool box
Switch distance limit setting
Linear scale distance limit setting
Stroke indicator
Lighting led panel
