Hydraulic press DPA
manualmotorizedstraightening

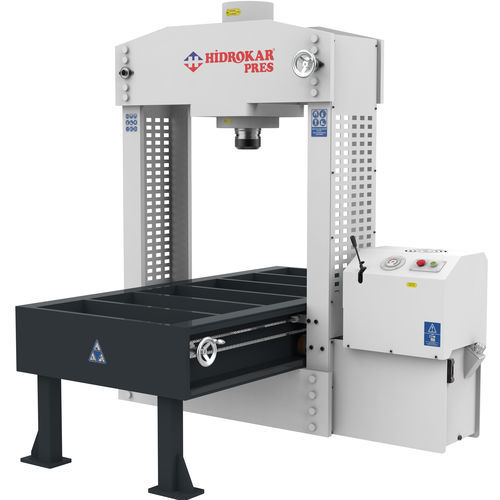

Hydraulic press - DPA - HIDROKAR PRES INDUSTRY AND TRADE CO. - manual / motorized / straightening
Hydraulic press - DPA - HIDROKAR PRES INDUSTRY AND TRADE CO. - manual / motorized / straightening
Hydraulic press - DPA - HIDROKAR PRES INDUSTRY AND TRADE CO. - manual / motorized / straightening - image - 2
Hydraulic press - DPA - HIDROKAR PRES INDUSTRY AND TRADE CO. - manual / motorized / straightening - image - 3
Hydraulic press - DPA - HIDROKAR PRES INDUSTRY AND TRADE CO. - manual / motorized / straightening - image - 4
Add to favorites
Compare this product

Go to the HIDROKAR PRES INDUSTRY AND TRADE CO. website for more information

Characteristics

Operation
hydraulic, manual, motorized
Function
straightening
Structure
with movable piston, frame, table type, traveling-head
Control
automatic, PLC-controlled, numerical control, hand-operated
Other characteristics
high-speed
Applications
for industrial applications, for the automotive industry, for plastics, for automotive parts, for sheet metal
Force

Max.: 200 tf

Min.: 100 tf

Opening

Max.: 700 mm
(28 in)

Min.: 700 mm
(28 in)

Stroke

Max.: 400 mm
(15.748 in)

Min.: 400 mm
(15.748 in)

Table width

Max.: 1,500 mm
(59 in)

Min.: 1,000 mm
(39 in)

Table length

Max.: 2,500 mm
(98 in)

Min.: 2,000 mm
(79 in)

Max. pressure

Max.: 265 bar
(3,844 psi)

Min.: 250 bar
(3,626 psi)

Working speed

Max.: 7 mm/s

Min.: 6 mm/s

Return speed

Max.: 14 mm/s

Min.: 9 mm/s

Approaching speed

Max.: 18 mm/s

Min.: 10 mm/s

Hydraulic pump power

Max.: 11 kW

Min.: 4 kW

Overall length

Max.: 2,380 mm
(94 in)

Min.: 1,920 mm
(76 in)

Overall width

Max.: 2,600 mm
(102 in)

Min.: 2,100 mm
(83 in)

Overall height

Max.: 2,800 mm
(110 in)

Min.: 2,200 mm
(87 in)

Description

DPA model, which is the ideal machine for operations requiring absolute precision and a flawless material surface, provides three-axis movement and practical use with its three different speeds, movable frame and cylinder. STANDARD FEATURES Robust steel construction Hydraulic unit requiring minimum maintenance Emergency stop button Hydraulic safety system Electrical safety system CE certification User manual Movable chassis Movable cylinder Double speed working system Pressure knob Lighting led panel OPTIONAL FEATURES PLC control system HMI touch screen Proportional valve system Contour ruler Aspirator piston Speed Setting
