Hydraulic press DPH
motorizedmechanicalstraightening

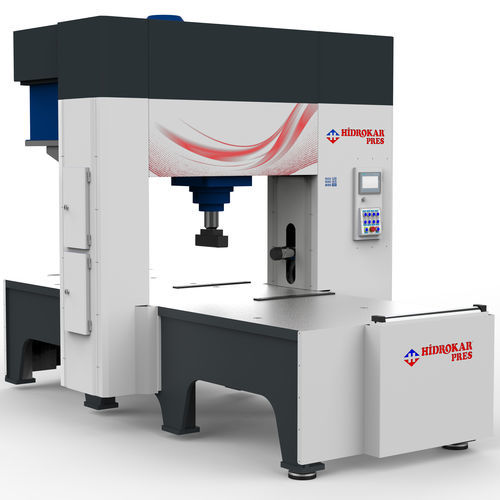

Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening
Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening
Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening - image - 2
Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening - image - 3
Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening - image - 4
Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening - image - 5
Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening - image - 6
Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening - image - 7
Hydraulic press - DPH - HIDROKAR PRES INDUSTRY AND TRADE CO. - motorized / mechanical / straightening - image - 8
Add to favorites
Compare this product

Go to the HIDROKAR PRES INDUSTRY AND TRADE CO. website for more information

Characteristics

Operation
hydraulic, motorized, mechanical
Function
straightening
Structure
H-frame
Control
automatic, PLC-controlled, numerical control, hand-operated
Force

Min.: 200,000 kgf

Max.: 400,000 kgf

Opening

Min.: 2,050 mm
(81 in)

Max.: 2,550 mm
(100 in)

Stroke

Min.: 400 mm
(15.748 in)

Max.: 400 mm
(15.748 in)

Table width

Min.: 2,000 mm
(79 in)

Max.: 2,500 mm
(98 in)

Table length

Min.: 4,000 mm
(157 in)

Max.: 4,000 mm
(157 in)

Max. pressure

Min.: 250 bar
(3,626 psi)

Max.: 290 bar
(4,206 psi)

Working speed

Min.: 7 mm/s

Max.: 9 mm/s

Return speed

Min.: 11 mm/s

Max.: 19 mm/s

Approaching speed

Min.: 11 mm/s

Max.: 18 mm/s

Hydraulic pump power

Min.: 11 kW

Max.: 22 kW

Overall length

Min.: 4,000 mm
(157 in)

Max.: 4,000 mm
(157 in)

Overall width

Min.: 2,800 mm
(110 in)

Max.: 3,700 mm
(146 in)

Overall height

Min.: 2,600 mm
(102 in)

Max.: 3,000 mm
(118 in)

Description

DPH, which has a portal type structure, provides versatile straightening with horizontal and vertical cylinders, greater functionality and ease of processing larger parts. STANDARD FEATURES Robust steel construction Hydraulic unit requiring minimum maintenance Emergency stop button Hydraulic safety system Electrical safety system CE certification User manual Movable chassis Movable cylinder Double speed working system Pressure knob Lighting led panel OPTIONAL FEATURES PLC control system HMI touch screen Proportional valve system Contour ruler Aspirator piston Speed Setting
