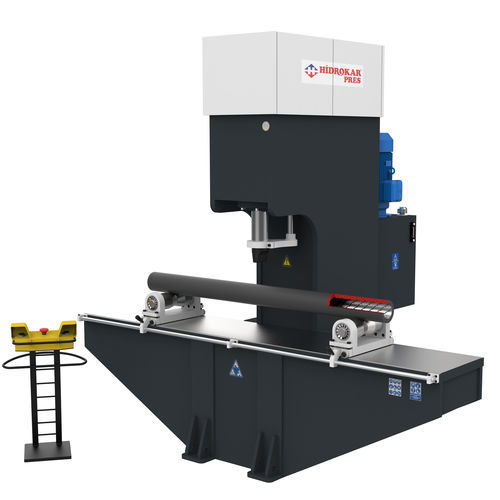

Hydraulic press DPCmanualmotorizedstraightening
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, manual, motorized
- Function
- straightening
- Structure
- C-frame
- Control
- automatic, PLC-controlled, numerical control, hand-operated
- Force
Min.: 20 tf
Max.: 60 tf
- Opening
Min.: 400 mm
(16 in)Max.: 400 mm
(16 in)- Stroke
Min.: 400 mm
(15.748 in)Max.: 400 mm
(15.748 in)- Table width
Min.: 400 mm
(16 in)Max.: 500 mm
(20 in)- Table length
Min.: 1,200 mm
(47 in)Max.: 2,000 mm
(79 in)- Max. pressure
Min.: 255 bar
(3,698 psi)Max.: 260 bar
(3,771 psi)- Working speed
Min.: 8 mm/s
Max.: 9 mm/s
- Return speed
Min.: 16 mm/s
Max.: 18 mm/s
- Approaching speed
Min.: 8 mm/s
Max.: 9 mm/s
- Hydraulic pump power
Min.: 1.5 kW
Max.: 5.5 kW
- Overall length
Min.: 1,250 mm
(49 in)Max.: 2,050 mm
(81 in)- Overall width
Min.: 1,000 mm
(39 in)Max.: 1,300 mm
(51 in)- Overall height
Min.: 1,900 mm
(75 in)Max.: 2,150 mm
(85 in)
Description
The most important feature that distinguishes DPC from other
models is that all three sides are open and it is more dimensionally free. This type of straightening presses provide convenience especially in straightening cylindrical and curved materials. It is especially preferred in the defense industry sector.
STANDARD FEATURES
Robust steel construction
Hydraulic unit requiring minimum maintenance
Emergency stop button
Hydraulic safety system
Electrical safety system
CE certification
User manual
Pressure knob
OPTIONAL FEATURES
PLC control system
HMI touch screen
Proportional valve system
Speed Setting
Movable cylinder
Lighting led panel
