Ball valve flangestainless steelfor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Body
- flange, stainless steel
- Applications
- for vacuum
- DN
Max.: 2 in
Min.: 1 in
- Pressure
Max.: 2 bar
(29 psi)Min.: 0 bar
(0 psi)- Temperature
150 °C
(302 °F)
Description

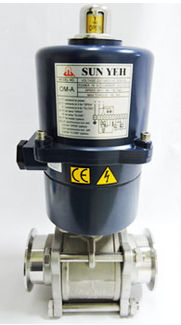

BALL VALVE - Motor Drive Specifications
Valve size for 1” to 2”
Flange：KF(NW)
Pressure Range： 2atm ~ 1x10-8 Torr
Leak rate: 5x10-9 Torr.l/s
Wetted materials：SUS316 , PTFE
Max temperature ：Electric drive 80°C / Body 150°C
Time to fall open：50Hz-13sec , 60Hz-12sec
The last letter of the P/N represents the Motor Voltage : A=AC 110V , B= AC 220V , C=AC 220 3ϕ , D=AC 380 3ϕ
Option ：Limit switch
