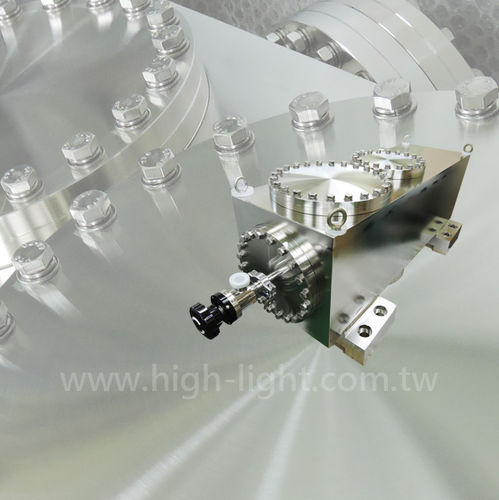

UHV vacuum chamber UHV Rectangle chamber

To customize the ultrahigh vacuum (UHV) chamber, contains the spherical chamber, cylindrical chamber and square chamber, all they are applied in ultrahigh vacuum (UHV) environment. CF flange sizes are available from CF16 to CF200. If you need bigger or special specifications of the CF cubes, please contact us and provide the drawing. Htc Vacuum will customize accordingly. CF100, CF200 rectangle UHV chamber Material：S.S.304 Surface: Electro-polished Spec: CF200 cylinder UHV chamber Leakage rate: 2 x 10-10mbar.l/sec Operation pressure<7.5 x10-10 torr When the total pressure is below 1 x10-9 torr, partial pressure of above 45amu is <0.1%. 16” spherical customized UHV chamber Material：S.S.304 Surface: Electro-polished Spec: 16” spherical UHV chamber Leakage rate: 2 x 10-10mbar.l/sec Operation pressure<7.5 x10-10 torr Flange concentricity < 0.2ﾟ Cylinder customized UHV chamber Material：S.S.304 Surface: Electro-polished Spec: CF200 cylinder UHV chamber Leakage rate: 2 x 10-10mbar.l/sec Operation pressure<5 x10-10 torr flange concentricity < 0.2ﾟ
